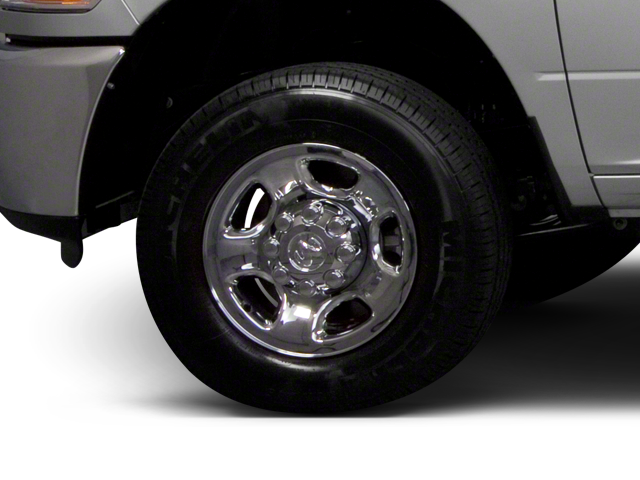

• 17" x 7.5" steel styled wheels
• LT245/70R17E all-season BSW tires
• Center hub
• 17" steel spare wheel
• Full size spare tire
• Winch-type tire carrier
• Black front bumper
• Black rear bumper
• Front bumper sight shields
• Front air dam
• Black grille
• Quad halogen headlamps
• Automatic headlamps
• Body color headlamp filler panel
• Cargo lamp
• Fold-away pwr heated mirrors -inc: black mirror caps
• Tinted glass
• Body color fuel filler door
• Black door handles
• Variable speed intermittent windshield wipers
• Front license plate bracket
• Fixed rear window

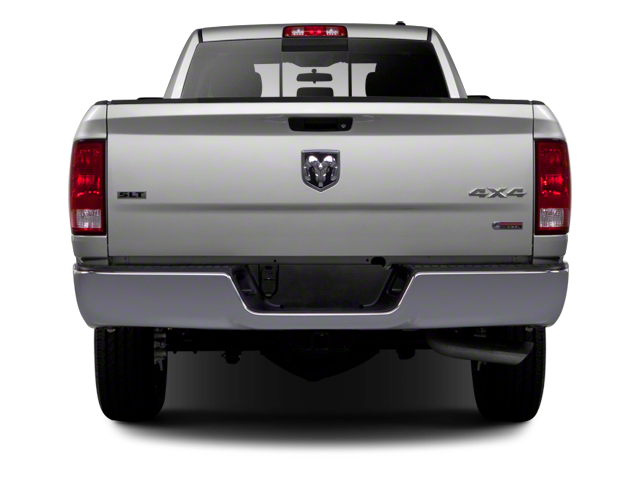

• Locking tailgate
• Vendor painted cargo box tracking

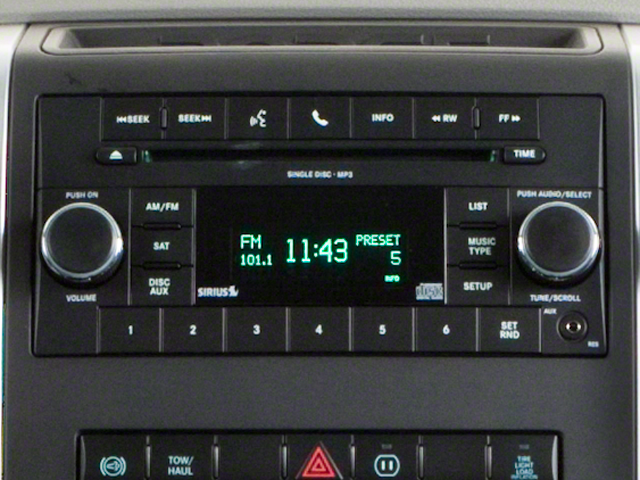

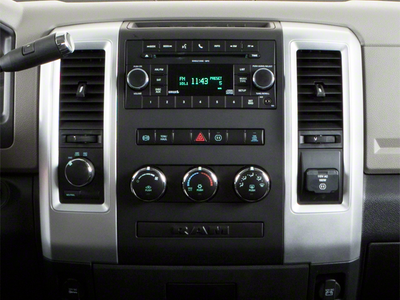

• Uconnect 130 -inc: AM/FM stereo, CD/MP3 player
• (6) speakers
• Audio input jack
• Fixed long mast antenna

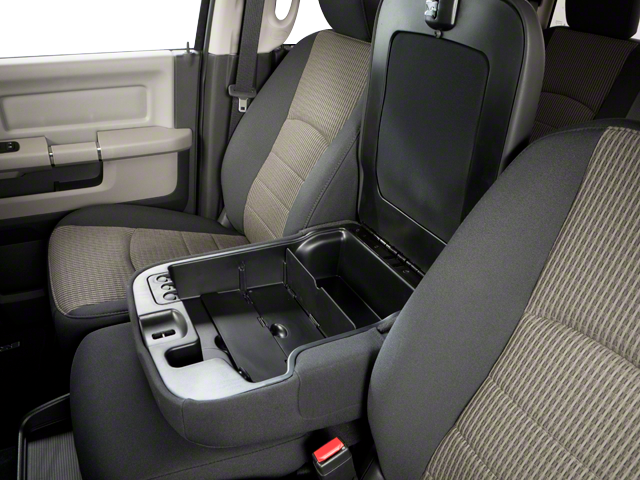

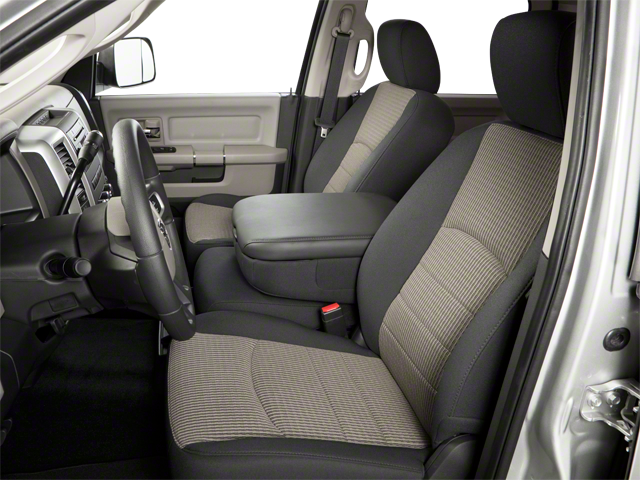

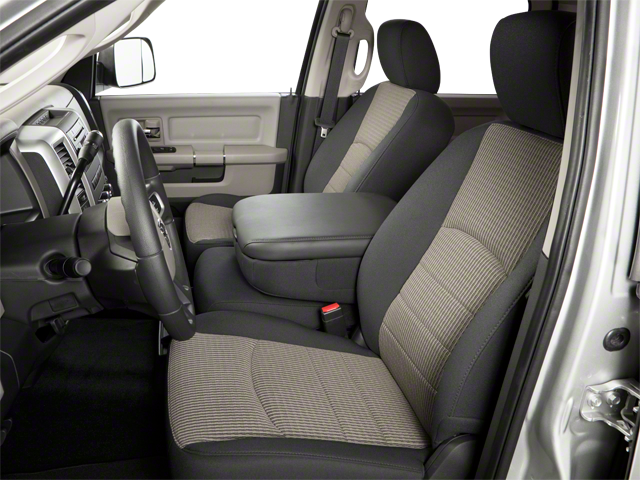

• HD vinyl 40/20/40 split bench seat

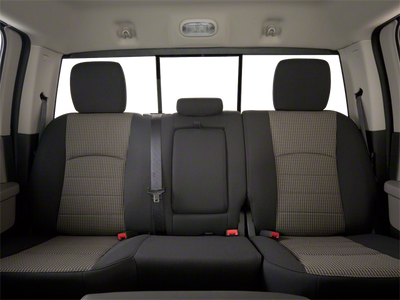

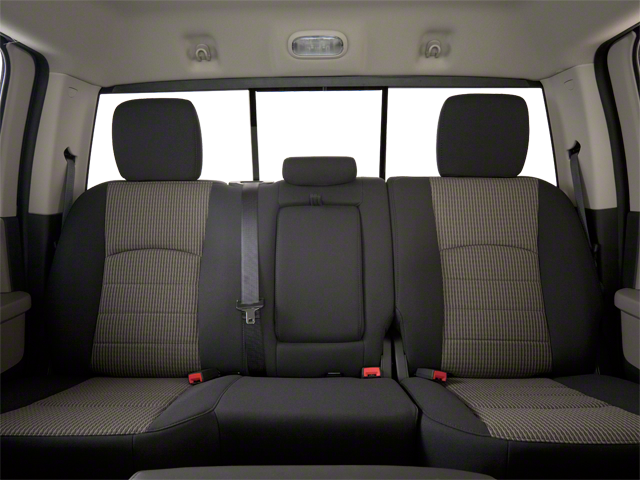

• Rear folding bench seat
• Mini floor console
• Black vinyl floor covering

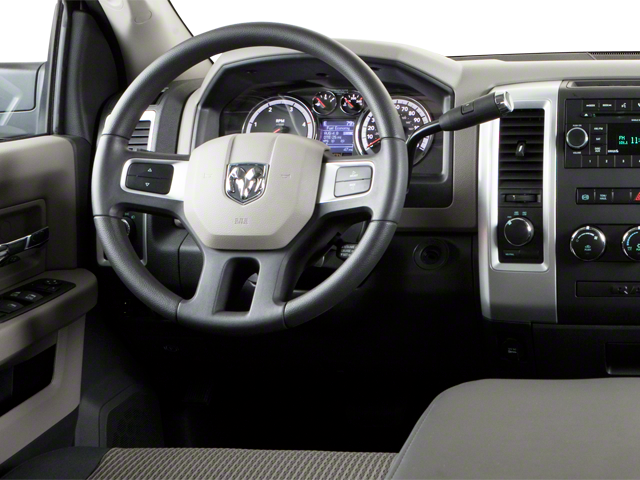

• 4-spoke steering wheel
• Tilt steering column
• Sentry Key theft deterrent system

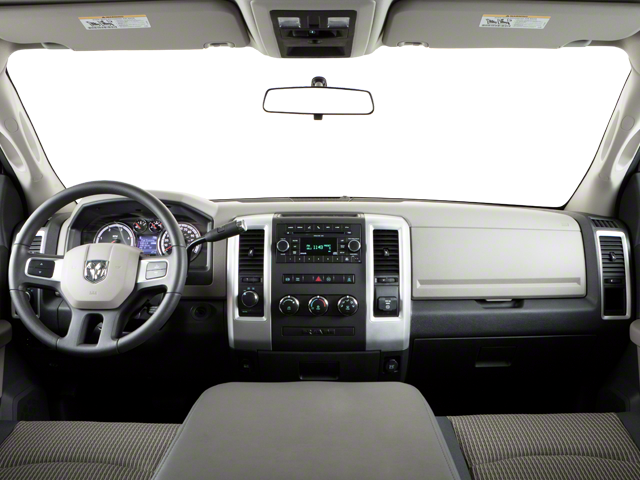

• Instrument cluster w/display screen
• Vehicle info center
• 120-MPH primary speedometer
• Pwr accessory delay

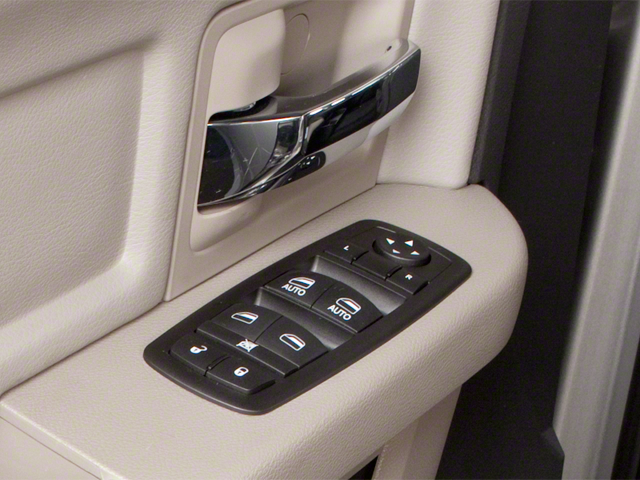

• Pwr windows w/front one-touch up & down
• Pwr locks
• Speed control
• Air conditioning
• 12V pwr outlet
• Rearview day/night mirror
• Black instrument panel bezel
• Driver/passenger assist handles
• Dual visors
• Rear dome lamp
• 2nd row in-floor storage bins
• Rear underseat compartment storage

• Electronic stability control
• Advanced multistage front air bags
• Supplemental side air bags
• Supplemental front seat side air bags
• Supplemental side curtain front & rear air bags
• Child safety door locks
• Front height-adjustable shoulder belts
• Tire pressure monitoring display
• Dual-note horn

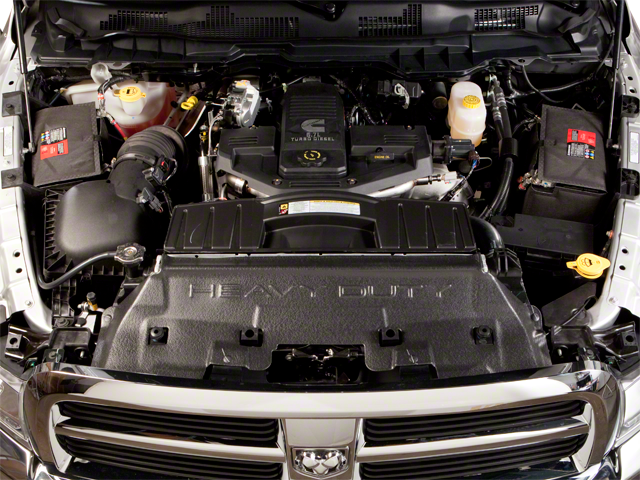

6.7L I6 CUMMINS TURBO DIESEL ENGINE

• 11.50 rear axle
• Cummins turbo diesel badge
• current generation engine controller
• diesel exhaust brake
• electronically controlled throttle
• front bumper sight shields
• 9600# GVWR
• tow hooks

• Quick Order Package 2FA ST
• 17" x 7.5" Steel Styled Wheels
• 17" x 8" Steel Chrome Clad Wheels
• Heavy Duty Vinyl 40/20/40 Split Bench Seat
• Cloth 40/20/40 Bench Seat
• Chrome Appearance Group
• Clearance Lamps
• Cold Weather Group
• Electric Shift-On-The-Fly Transfer Case
• Engine Block Heater
• Radio: Uconnect 130 AM/FM/CD/MP3
• Popular Equipment Group
• Black Power Trailer Tow Mirrors
• Protection Group
• Trailer Brake Control
• Uconnect Voice Command w/Bluetooth®
• Remote Keyless Entry
• SIRIUS Satellite Radio
• Transfer Case Skid Plate Shield
• 40/20/40 Split Bench Seat
• Rear Folding Seat
• Carpet Floor Covering
• Front & Rear Floor Mats
• Mini Floor Console
• Storage Tray
• Auto-Dimming Rear-View Mirror
• Manual Adjust Seats
• Black Exterior Mirrors
• Exterior Mirrors w/Supplemental Signals
• Exterior Mirrors Courtesy Lamps
• Bright Rear Bumper
• Bright Front Bumper
• Bright Grille
• Cummins Turbo Diesel Badge
• Rear Wheel Spats
• High Output Badge
• Diesel Exhaust Brake
• Exterior Mirrors w/Heating Element
• Current Generation Engine Controller
• Center Hub
• Winter Front Grille Cover
• Tow Hooks
• Locking Tailgate
• 4-Wheel Disc Brakes
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Speed control
• Rear step bumper
• Rear seat center armrest
• Power windows
• Power steering
• Power door mirrors
• Passenger door bin
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Heated door mirrors
• Fully automatic headlights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• CD player
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Front Center Armrest
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Total Cooling System Capacity (qts): 18.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5500
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6000
• Curb Weight - Front (lbs): 3576
• Curb Weight - Rear (lbs): 2706
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10550
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1583
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Five-Link
• Suspension Type - Rear: Hotchkiss
• Spring Capacity - Front (lbs): w/Coil Springs
• Spring Capacity - Rear (lbs): w/Leaf Springs
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.2 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: TWD
• Rear Tire Order Code: TWD
• Spare Tire Order Code: TBB
• Front Tire Size: LT245/70R17E
• Rear Tire Size: LT245/70R17E
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34.0
• Fuel Tank Location: Inboard Frame Rail
• Exterior Dimensions
• Wheelbase (in): 148.9
• Length, Overall w/o rear bumper (in): 237.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 77.7
• Overhang, Front (in): 39.9
• Overhang, Rear w/o bumper (in): 48.7
• Front Bumper to Back of Cab (in): 152.0
• Cab to Axle (in): 36.7
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.4
• Ground Clearance, Rear (in): 7.1

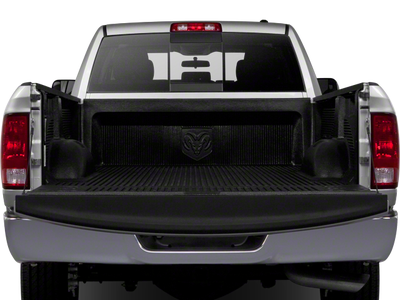

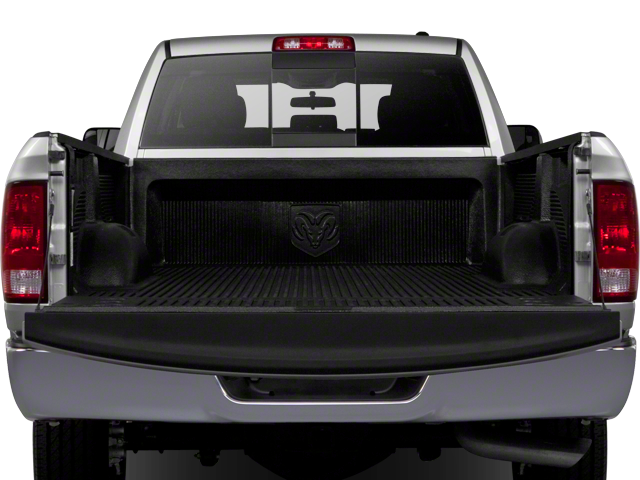

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 57.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.9
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary

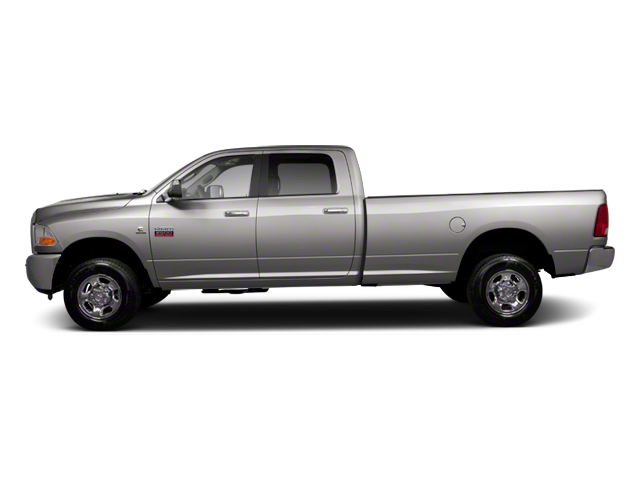

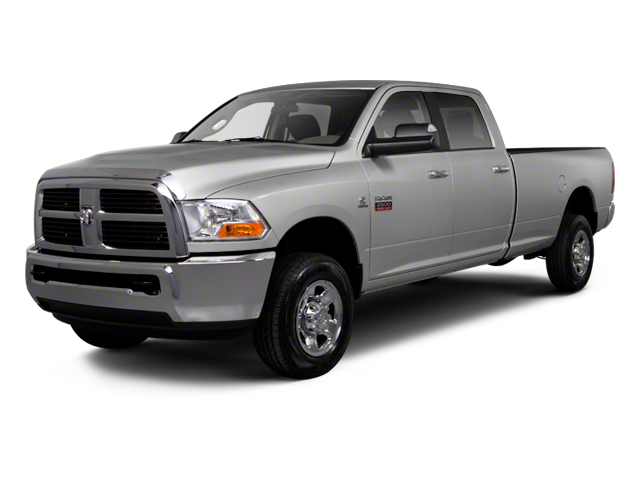

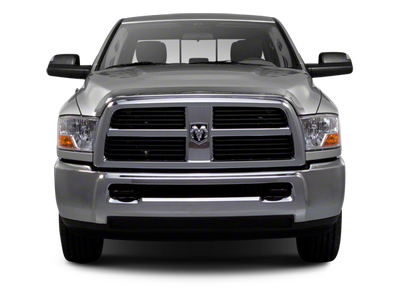

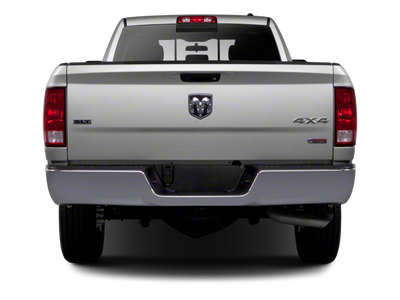

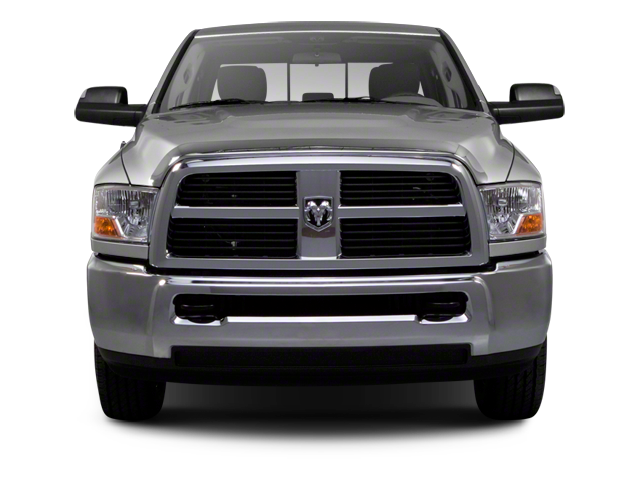

• Vehicle Name: Ram 2500
• Body Style: Crew Cab Pickup
• Body Code: 149" WB
